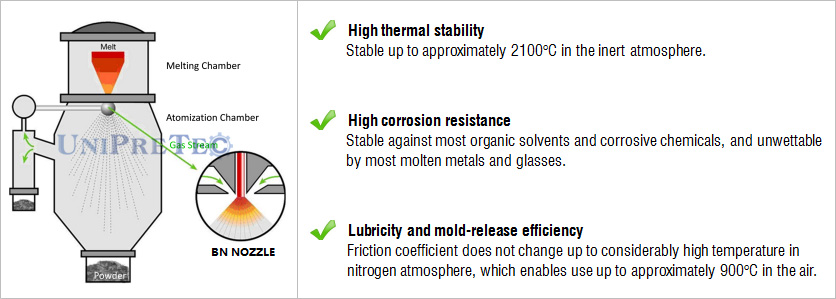

BN Boron Nitride Nozzles for Molten Metal Gas Atomization

Hot Pressed Hexagonal Boron Nitride (HPBN/HBN) is an ideal material, which is used to make the Nozzles for molten metal atomization. It is lubricious, machinable, chemical inert, thermal shock resistant and non-wet by molten metal.
  • Material

    : Hot Pressed Boron Nitride
  • Color

    : Grey & White
  • Max. Service Temperature

    > 2000 degree C
Inquiry now
Product Detail

Hot Pressed BN Boron Nitride Nozzles for Molten Metal Gas Atomization





Specifications or shapes of BN Ceramic Spray Nozzles are very flexible, because customized sizes can be easily achieved by normal tool machining work from hot pressed BN Boron Nitride blocks. Here we can see that BN is a lubricious, soft and machinable material, besides, Boron Nitride is with the platy hexagonal structure, so it's often referred to as "white graphite". Both BN and graphite are thermal shock resistant and widely used in high temperature environment, however, BN is a very good electrical insulator. Furthermore, in order to get different properties, Boron Nitride can be composited with other materials, like Aluminum Oxide, Aluminum Nitride, Silicon Carbide, Zirconium Oxide... According to different customers' applications, UNIPRETEC is good at producing solid Boron Nitride in different grades.



Technical Material Properties of BN Boron Nitride Nozzles for Molten Metal Gas Atomization




Manufacturing Processes of Boron Nitride Nozzles for Molten Metal Gas Atomization





CONTACT US


Hot Pressed Hexagonal BN Boron Nitride Ceramics is an excellent material solution for various industries. UNIPRETEC devotes herself to research and development of high performance advanced material - BN Boron Nitride. We welcome any opportunity related to above products from any one who are interested in developing or sourcing high tech ceramic components from us. If you need any further information, please do not hesitate to contact us via e-mail info@unipretec.com or telephone 0086-592-5510319

Request a free quote

If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
