Hexagonal BN Boron Nitride Ceramic Plate for Substrate Heater

Material Hot Pressed exagonal Boron Nitride (HPBN/HBN) is used to make the Ceramic Plates for Substrates Heater. It is lubricious, machinable, chemical inert, electrical insulated and thermal shock resistant. Besides, BN Boron Nitride is widely used in high temperature environment, the service temperatures of BN are max. 900°C in oxidizing atmospheres and max. 2,100°C in inert atmospheres.
Inquiry now
Product Detail

Hexagonal BN Boron Nitride Ceramic Plate for Substrate Heater

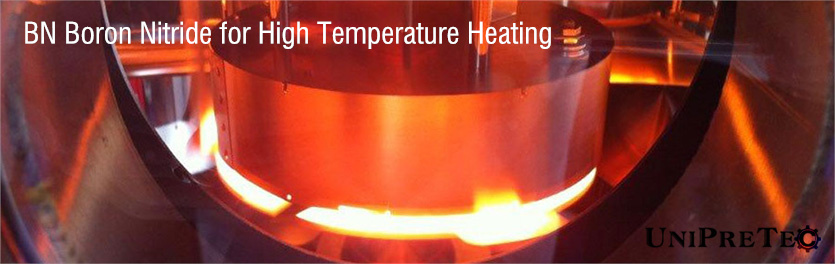

Boron Nitride is used to make the top plates for high temperature heating. The BN Ceramic Plates are typically used for Semiconductor Substrate Heating (MBE/MOCVD/Sputtering/CVD), Superconductor Substrate Heating, Sample Heating During Analysis, Sample for Electron Microscope Heating, Melt Heating, Source Heating during Metal Evaporation...


Material BN Boron Nitride is lubricious, soft, machinable and with the platy hexagonal structure, so it's often referred to as "white graphite". Both BN and graphite are thermal shock resistant and widely used in high temperature environment, but BN is a very good electrical insulator. Boron Nitride can be composited with other materials, like Aluminum Oxide, Aluminum Nitride, Silicon Carbide, Zirconia... According to different customers' applications, UNIPRETEC is good at producing solid Boron Nitride in different grades.



Advantages of Material BN Boron Nitride Ceramics




Technical Properties of Material BN Boron Nitride Ceramics




Typical Applications of Material BN Boron Nitride Ceramics


CVD crucibles
Microwave tubes
Low friction seals
Sputtering targets
Plasma arc insulators
Microcircuit packaging
Vacuum melting crucibles
Horizontal continuous casting break rings
High temperature furnace fixtures and supports
High precision sealing, brazing, and metallizing fixtures
Boron doping wafers in silicon semiconductor processing
Electronic parts(heat sinks, substrates, coil forms, prototypes)

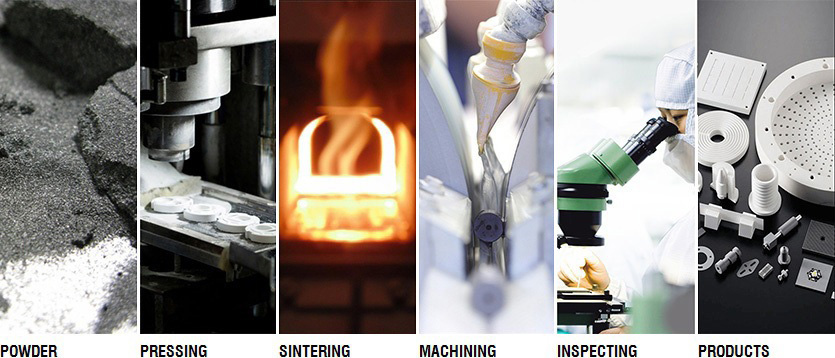

Manufacturing Processes of BN Boron Nitride Ceramic Crucible





CONTACT US


Hot Pressed Hexagonal BN Boron Nitride Ceramics is an excellent material solution for various industries. UNIPRETEC devotes herself to research and development of high performance advanced material - BN Boron Nitride. We welcome any opportunity related to above products from any one who are interested in developing or sourcing high tech ceramic components from us. If you need any further information, please do not hesitate to contact us via e-mail info@unipretec.com or telephone 0086-592-5510319
