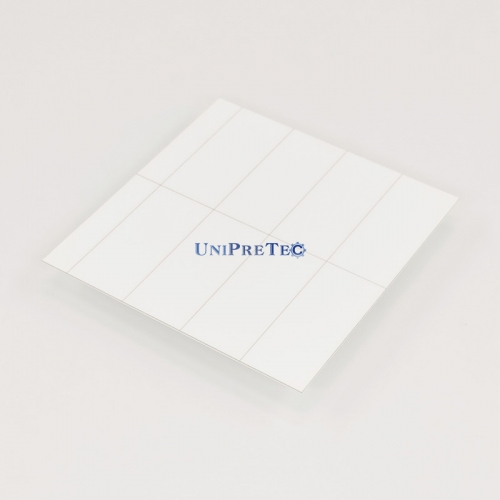

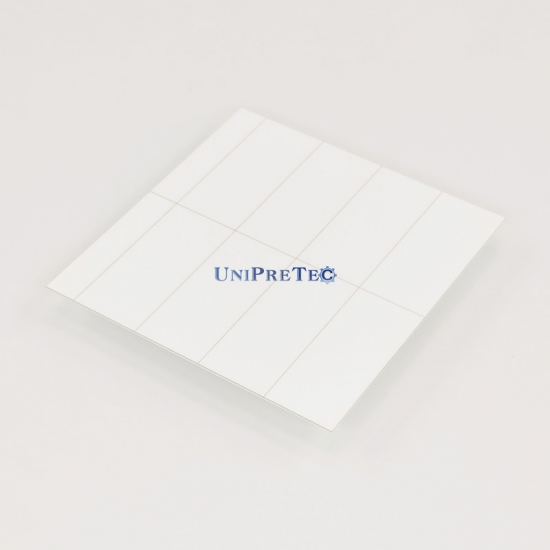

Al2O3 Aluminum Oxide Alumina Ceramic Plate

Alumina(Al2O3) is the most widely used advanced ceramic, Alumina Ceramic Plate is electrical insulated, wear & corrosion resistant, high temperature resistant... Aluminum Oxide is an excellent material choice for various industries.
  • Material

    : Aluminum Oxide
  • Color

    : White & Ivory
  • Density

    : 3.65-3.90 g/cm3
  • Thermal Conductivity

    : 20-30 W/m.K
  • Max. Service Temperature

    : > 1500 degree C
Inquiry now
Product Detail

Al2O3 Aluminum Oxide Alumina Ceramic Plate


Alumina Ceramic is the most widely used advanced ceramic. After high pressure pressed and high temperature sintered, Al2O3 is hard, chemical inert, electrical insulated, good thermal shock and high temperature resistant. People can find components made of Aluminum Oxide in various industries, like plungers and pistons in pumps, trays and setters in MIM sintering process, thick film ceramic substrates in electronic devices, high voltage insulators in electrical industry... UNIPRETEC offers Alumina Ceramic in high purity range from 90% to 99.7%, besides, we are good at manufacturing Aluminum Oxide Components by dry pressing, cold isostatic pressing, injection molding, tape casting, slip casting...


Materials' Properties of Al2O3 Aluminum Oxide Alumina Ceramic Plate



Standard Dimensions and Tolerance

Length X Width
 Thickness
 Tolerance (Thickness)
 110mm x 110mm (4.3" x 4.3")
 0.25mm (0.010")
 ±0.03mm(<1.0mm)
 114mm x 114mm (4.5" x 4.5")
 0.38mm (0.015")
 ±0.05mm(1.0mm - 1.5mm)
 120mm x 120mm (4.7" x 4.7")
 0.50mm (0.020")
 ±0.07mm(>1.5mm)
 127mm x 127mm (5.0" x 5.0")
 0.63mm (0.250")
 ±0.10mm(>2.0mm)
 130mm x 140mm (5.1" x 5.5")
 0.76mm (0.030")

 109mm x 130mm (4.3" x 5.1")
 1.00mm (0.390")
 Tolerance (Length and Width)
 190mm x 140mm (7.5" x 5.5")
 2.00mm (0.790")
 +0.25mm/-0.05mm
∆ Customized dimensions are available. Laser cutting service can be provided and make customized shapes and holes.


Manufacturing Processes of Al2O3 Aluminum Oxide Alumina Ceramic Plate


manufacturing processes of alumina ceramics
