Ceramic Welding Guide Pins

Technial Ceramics are used to make the welding guide pins, which are used for projection welding and resistance welding in automotive industry. Ceramic pins are electrical insulated and high thermal shock resistant. Besides, they can be used up to 1,200 degree C. So they offer much longer service life and higher economic efficiency.
  • Material

    : Si3N4 & ZrO2
  • Color

    : Black & Blue & White
  • Max. Service Temperature

    : 1,200 degree C
Inquiry now
Product Detail


● Description of Ceramic Guide Pins

UNIPRETEC manufactures a comprehensive range of silicon nitride, sialon and zirconia advanced ceramic weld location and control pins. These are used in the metal forming industry to allow precise welding of nuts to sheet metal.


Si3N4 Silicon Nitride ceramic possess a number of characteristics, such as excellent mechanical, thermal and chemical properties, making them ideal in metal forming applications. Silicon nitride weld location pins have a proven history of success of more than 20 years by several leading automotive manufacturers.

Zirconia ceramic weld location pins are a more recent addition to our portfolio. They excel where their greater toughness is required, such as when severe impact is a possibility. Like YSZ Zirconia, it has excellent wear resistance, however they are not recommended where thermal shock may occur. Also, they are double the weight of an equivalent Si3N4 weld pin. We make a whole range of none standard sizes, so please contact us with your enquiry.


● Features of Ceramic Weld Pins

 √ Fewer Cold Welds
 √ Electrical Insulation
 √ Higher Energy Efficiency
 √ Improved Weld Precision
 √ No Welding Spatter Adhesion
 √ High Thermal Shock Resistance
 √ Using Temperature up to 1,200°C/2,190°F
 √ 25x Longer Service Life than KCF Material


● Material Properties of Ceramic Pins

ITEM
UNIT
Alumina
Zirconia
Silicon Nitride
Main Content
- 99% Al2O3
ZrO2>94.5%
Si3N4>90%
Color
- Ivory
White / Blue
Black / Grey
Density
g/cm3
3.85
5.95 3.22
Vickers Hardness
Gpa
17 12 15
Flexural Strength
Mpa
360 800 580
Compressive Strength
Mpa
2,500
2,500
2,200
Electrical Resistivity
Ω·cm
>1014
>1010
>1012
Dielectric Strength
KV/mm
17 9 19
Dielectric Constant
1 MHz
9 28 9.6
Thermal Conductivity
W/m.K
29 2.2 27
Max. Working Temperature
°C / °F
1,650 / 3,000
800 / 1,470
1,200 / 2,190
Resistance to Thermal Shock
△T(°C)
230
260
750
Thermal Expansion Coefficient (25 - 1,000 °C)
10-6/K
7 - 9
11 - 13
3 - 4

∆ The data is offered for reference only, exact data will vary depending on producing method & part configuration.




Request a free quote

If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!

Hot Products
  • Waterjet Cutting Intensifier Ceramic Plunger

    Zirconia Ceramic Plungers for Waterjet Intensifier

    Due to the ceramic's resistance to chemicals, heat, abrasion, and its low thermal expansion, etc., UNIPRETEC uses zirconia ceramic instead of SUS to make the plungers (pistons) for high pressure waterjet pump intensifier parts. We are specialized in making ceramic plungers that meet customers' needs in terms of roundness, straightness, surface roughness, etc., and improving work efficiency, product lifetime, and precision.

  • ceramic plunger

    Ceramic Plungers for Pump

    Due to the ceramic's resistance to chemicals, heat, abrasion, and its low thermal expansion, etc., UNIPRETEC uses ceramics instead of SUS to make plungers (pistons) for high pressure plunger pumps, automatic filling machines, medical controlled volume pumps, syringe pumps, etc. We are specialized in making ceramic plungers that meet customers' needs in terms of roundness, straightness, surface roughness, etc., and improving work efficiency, product lifetime, and precision.

  • zirconia frac plug button

    ZrO2 Zirconia Ceramic Frac Plug Buttons

    Zirconium dioxide, also known as zirconia and zirconium oxide, is a crystalline metal oxide that has found its way into the technical advanced ceramics industry. It is characterised by its high thermal resistivity, mechanical resistance, and abrasive properties.

  • Alumina Ceramics

    Alumina Ceramic Piston for High Pressure Washer Pump

    The ceramic pistons are made using the advanced aluminum oxide ceramic material that possesses high hardness, wear resistance, high temperature resistance, and corrosion resistance, ensuring consistent material performance.

  • boron nitride chamber

    Boron Nitride Plasma Chambers for Hall Effect Thrusters

    One common application for boron nitride is channels used in Hall-effect thrusters for satellites. A hall effect thruster combines an electric field with a magnetic field to ionize a gas flow to generate plasma. The electric field inside an annular channel accelerates the ions in the plasma to very high exhaust velocities.

  • boron nitride crucible

    BN Boron Nitride Crucible Liner

    Crucibles made of BN Boron Nitride are not wetted by molten metal liquids and can be used at temperature up to 2,000 degree C. BN ceramic crucibles own outstanding thermal shock resistance and are also non-electrically conductive. Choosing BN crucibles can bring you high quality sintering and long use life.

Related products

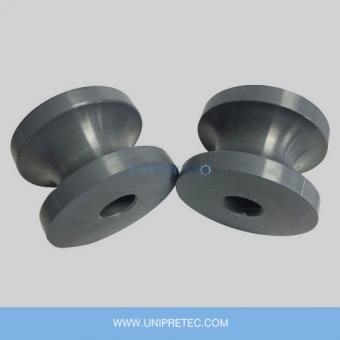

Ceramic Welding Guide Roll
