Technical Ceramics

LOADING IMAGES

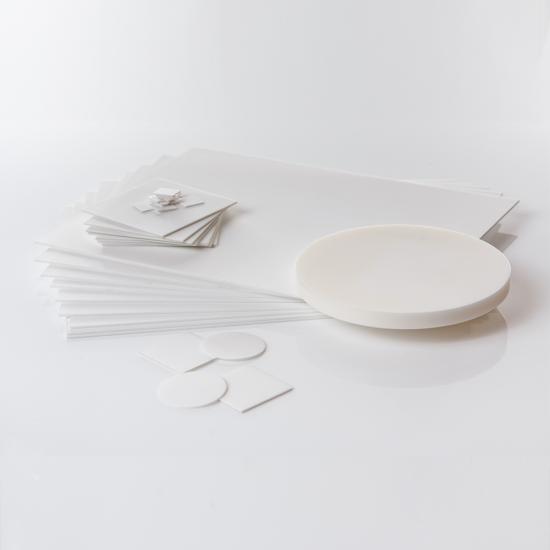

Alumina Ceramic Heat Dissipation Insulator Substrate

Alumina Ceramic is the material used in a wide variety of industrial and engineering applications for its high performance and purity. Alumina oxide is chosen for its strength, stiffness, and resistance to corrosion, as well as its electrical insulation and high thermal conductivity.
  • Density :

    3.65 - 3.90 g/cm3
  • Max. Service Temp. :

    1500 - 1800 degree C
  • Thermal Conductivity :

    20 - 30 W/m.K
  • Dielectric Strength :

    15 - 20 KV/mm
Inquiry now
Product Detail

Material Introdution


Alumina/Aluminium Oxide/Al2O3 is a major engineering ceramic material. It offers a combination of good mechanical properties and electrical properties leading to a wide range of applications. Aluminum Oxide Ceramic can be produced in a range of purities with additives designed to enhance properties. A wide variety of ceramic processing methods can be applied including machining or net shape forming to produce a wide variety of sizes and shapes of component. Alumina based ceramics are by far the largest range of technical ceramics made by UNIPRETEC. Due to the important combination of properties, we have thoroughly researched the behaviour and characteristics of our Alumina products to give you the best possible component.


  High Hardness
  Low Coefficient of Thermal Expansion
  Excellent Electrical Insulator
  Mechanically Stable at High Temperature
  Good Thermal Shock Resistance
  High density, non-porous and vacuum tight
  Resists Abrasive Wear and Chemical Attack
  ......

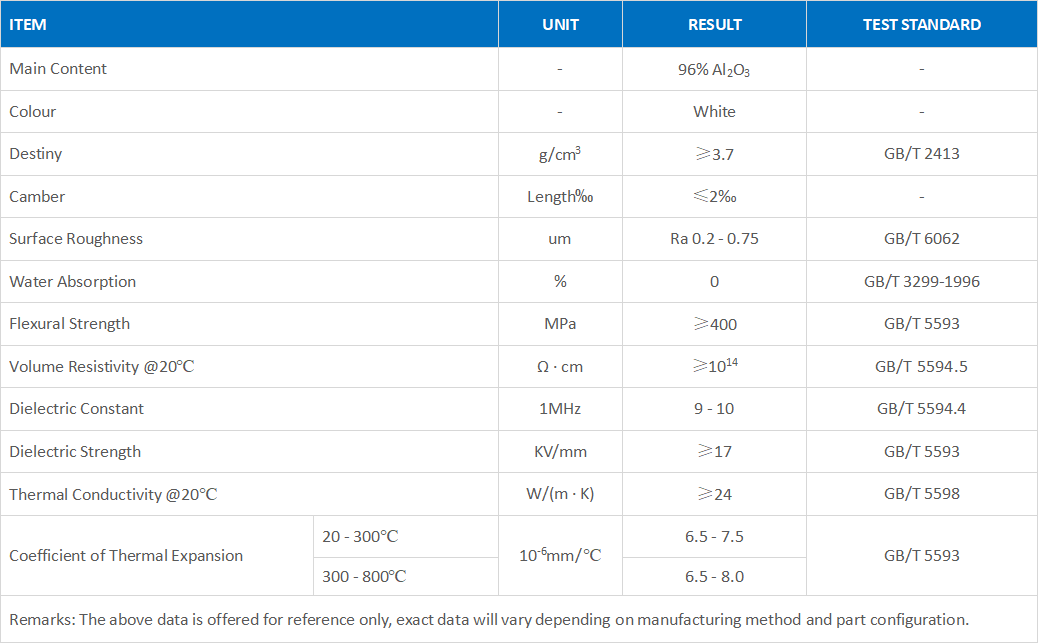

Materials' Properties

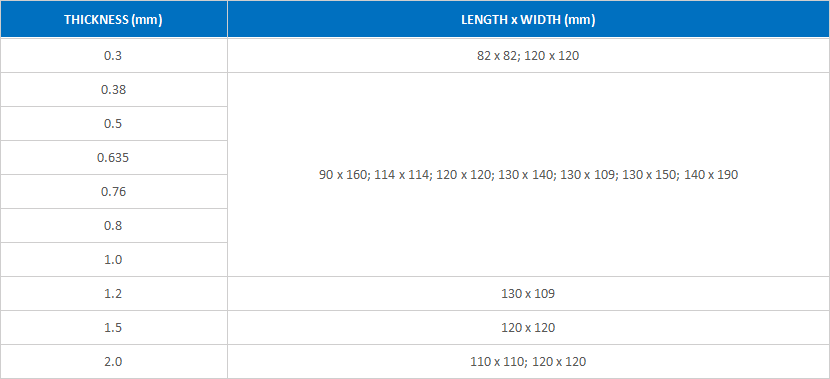

Standard Sizes


Request a free quote
