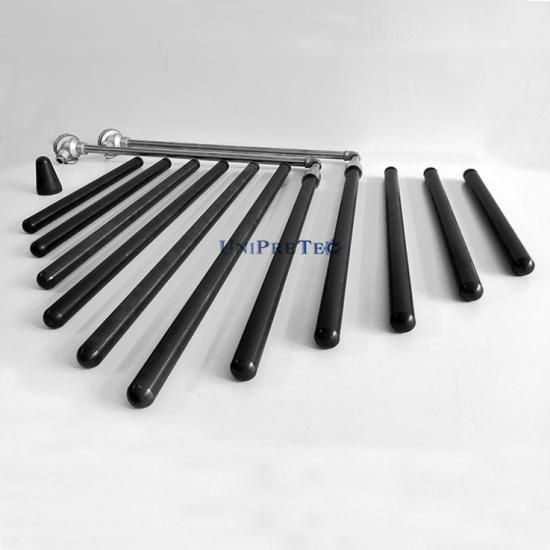

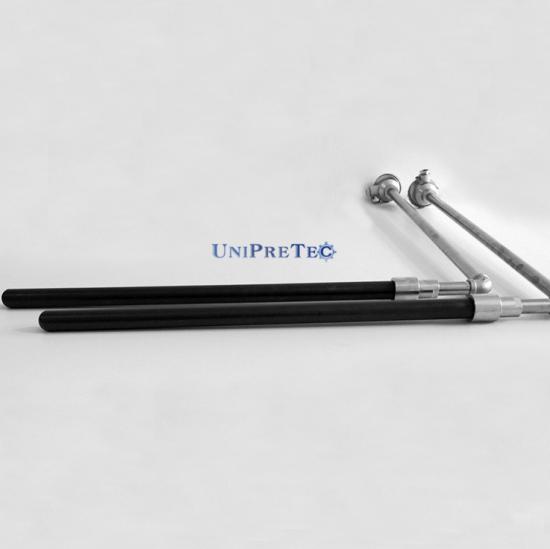

The silicon nitride protection tube is used for heating non-ferrous metal melts such as aluminum liquid and zinc liquid. It has a compact structure, long service life and high cost performance. It is an ideal material for protection tube.
- Silicon nitride ceramic has excellent performance in heat resistance, so the product can withstand the heat load of high temperature heating element.
- Its strong thermal shock resistance ensures that the protection tube still keep working continuously under the situation that aluminum liquid heat goes up and down and the temperature difference between the heating element and the aluminum liquid gets big, thus plugging and unplugging will not affect performance during batch operation.
- The superior corrosion resistance makes the eluted contaminants not enter the molten aluminum liquid, thereby maintaining the purity of the aluminum liquid.
- The low wettability to molten aluminum makes it easy to maintain and operate.
- Silicon nitride ceramics have excellent high temperature resistance and high temperature mechanical strength, and can withstand the heat load of high temperature heating elements.
- It is non-wetting to molten aluminum liquid, which can greatly reduce the slag adhesion on the surface of the protection tube, which improve the purity of aluminum liquid.
- It has excellent insulation properties to ensure good insulation between the heating element and the aluminum liquid.
- The superior corrosion resistance and wear resistance of silicon nitride ceramics can protect the internal heating element and operate normally for a long time, and the practical application proves that the operating life can exceed 1 year.
Standard Size:
OD28*ID16*L300mm / L350mm / L400mm / L500mm / L600mm / L700mm / L800mm / L900mm / L1000mm / L1200mm
