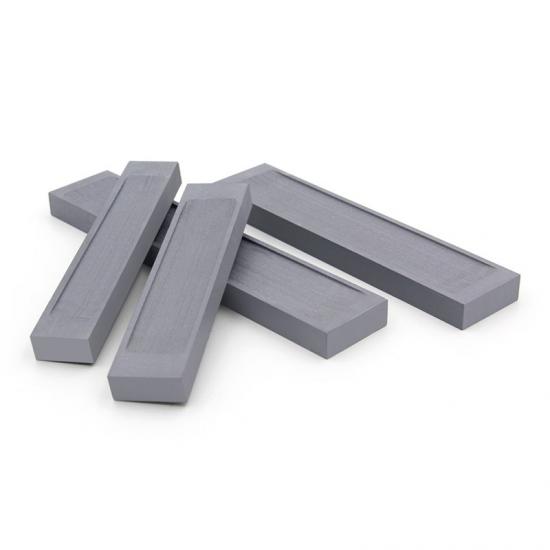

Titanium Diboride TiB2 Ceramic Evaporation Boats for Vacuum Metallizing Web Coating

UNIPRETEC provides innovative, high performance and economical Titanium Boride (TiB2) evaporation boats for vacuum metallizing as well as specialty applications. Titanium Boride (TiB2) Evaporation boats are the best thermal evaporation source for vacuum evaporation metalizing. The main raw materials used are BN and TiB2 powder.

Characteristics of titanium boride evaporation boat:

- Solve the problem of coating sputtering climbing pot and nickel and copper corrosion problems;

- Stable chemical properties, excellent thermal stability, stable resistivity;

- Good oxidation resistance, corrosion resistance to metal aluminum, nickel, copper and gold;

- The density is 4.50-4.52, the melting point is 2,980℃, the bending strength of hot-pressed titanium diboride is 131.3×106Pa, and the oxidation resistance temperature in the air reaches 1,100℃;

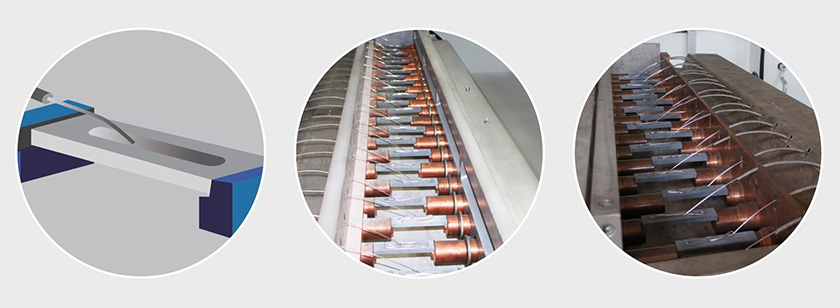

- Due to their superior initial wetting behaviour, Titanium Boride (TiB2) evaporation boats allow extremely easy handling while being compatible with all vacuum coaters in operation at an evaporation rate of up to 0,35/(min*cm2). That perfectly fits all metallizing processes while guaranteeing easiest control of operational parameters;

- With the advantages of long life, uniform evaporation, fast heating speed, high evaporation rates and easy operation, so it greatly reduces the direct metallizing cost and subsequent recycling charges.
