ZrO2 Zirconia Ceramic Welding Guide Pins


LOADING IMAGES

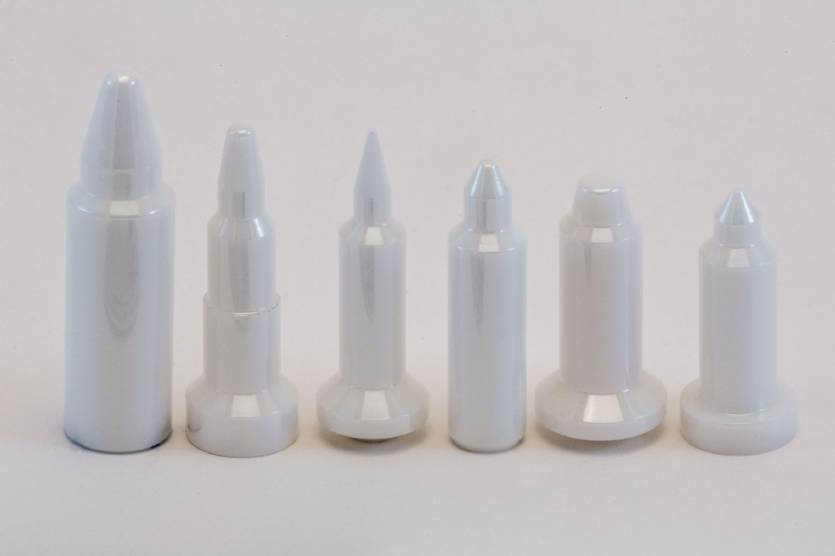

ZrO2 Zirconia Ceramic Welding Guide Pins ZrO2 Zirconia Ceramic Welding Guide Pins

ZrO2 Zirconia Ceramic Welding Guide Pins

Zirconia Ceramics are used to make the welding guide pins, which are used for projection welding and resistance welding in automotive industry. Ceramic pins are electrical insulated and high thermal shock resistant. Besides, they can be used up to 800 degree C. So they offer much longer service life and higher economic efficiency.

  • Material

    ZrO2

  • Color

    Blue & White

  • Density

    6.0g/cm³

  • Thermal Conductivity

  • Max. Service Temperature

    800 degree C

  • Typical Advantages

Inquiry now
Product Detail


● Description of Zirconia Ceramic Weld Pins


UNIPRETEC manufactures a comprehensive range of zirconia advanced ceramic weld location and control pins. These are used in the metal forming industry to allow precise welding of nuts to sheet metal.

Zirconia ceramic weld location pins are a more recent addition to our portfolio. They excel where their greater toughness is required, such as when severe impact is a possibility. Like YSZ Zirconia, it has excellent wear resistance, however they are not recommended where thermal shock may occur. Also, they are double the weight of an equivalent Si3N4 weld pin. We make a whole range of none standard sizes, so please contact us with your enquiry.


● Features of Ceramic Weld Pins

 √ Fewer Cold Welds
  √ Electrical Insulation
 √ Higher Energy Efficiency
  √ Improved Weld Precision
 √ No Welding Spatter Adhesion
  √ High Thermal Shock Resistance
 √ Using Temperature up to 800°C
  √ 25x Longer Service Life than KCF Material


● Material Properties of Ceramic Pins



∆ The data is offered for reference only, exact data will vary depending on producing method & part configuration.
